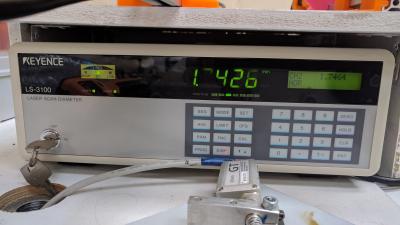

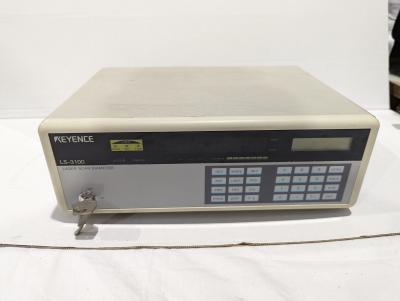

Model; LS-3100
Type; Standard controller
Display; monitor
Green LED (7 levels)
Measurement display
Main display: 7-segment green LED, 8-digit sub display: 16-character LCD × 2 rows (backlight colour: yellowish green)
Minimum display unit
0.1 µm
Display range
-999.9999 to 9,999.9999
Tolerance check output display
Green LED x 3 (HI/GO/LO)
Laser emission indicator
Green LED x 2 (HEAD 1/HEAD 2)
Terminal block I/O
Analog voltage
±6 V, Output impedance: 0 Ω
Control output
SPST-NO Relay contact 250 VAC 2 A (resistive load)
Control input
Non-voltage input (contact/solid state)
Interface
RS-232C
Measurement data output and control output (baud rate: selectable between 75 and 19,200 bps)
GP-IB
Measurement data output and control output*1
BCD
Measured data output (8 digits)*1
Rating
Power voltage; 85 to 264 VAC, 50/60 Hz
Power consumption; 40 VA or less
Environmental resistance
Enclosure rating; IP60
Ambient temperature; 0 to +40 °C 32 to 104 °F
Relative humidity; 35 to 85 % RH (No condensation)
Weight; Approx. 4.6 kg
